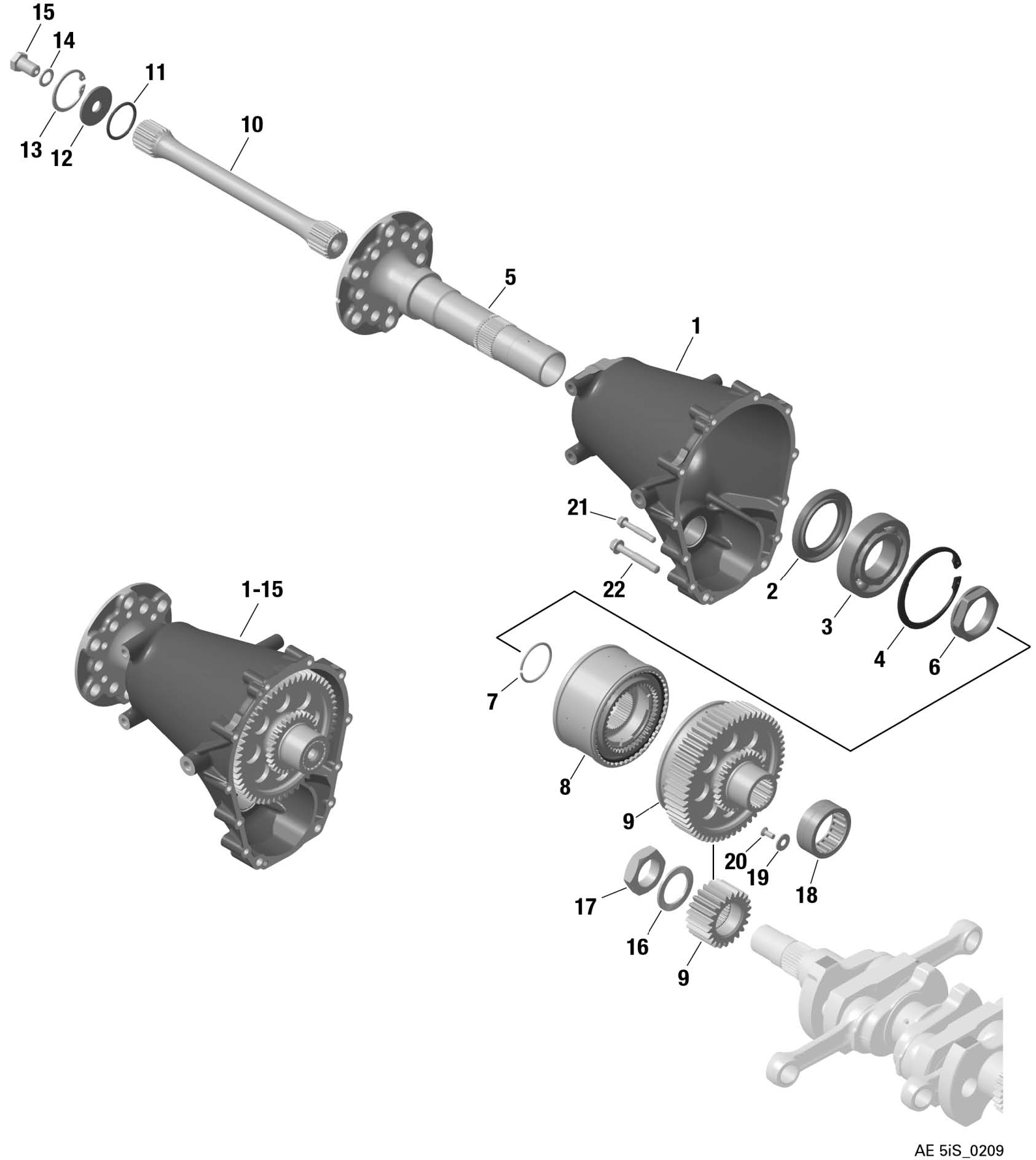

fig. 72-10-00-a
PROPELLER GEAR ASSY. For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-15 | 686790 | GEARSET 2,54 - 3 TORSION SHAFT PACKAGED | 1 | 7444.69 | + |
| 1 | 911985 | GEARBOX HOUSING ASSY. | 1 | 3982.68 | + |
| 2 | 950091 | OIL SEAL AS 48X72X8 FKM | 1 | 21.46 | + |
| 3 | 832060 | BALL BEARING 6208 TN9 C3 | 1 | 511.44 | + |
| 4 | 845120 | RETAINING RING 80X2,85 | 1 | 20.52 | + |
| 5 | 837221 | PROPELLER SHAFT | 1 | 1754.54 | + |
| 6 | 942320 | COLLAR NUT M40X1,5 LH | 1 | 42.89 | + |
| 7 | 245935 | RETAINING RING DIN 9925 - 38 | 1 | 1.58 | + |
| 8 | 958418 | DAMPING CLUTCH ASSY. | 1 | 4693.79 | + |
| 9 | 958413 | OVERLOAD CLUTCH ASSY. | 1 | 2664.2 | + |
| 10 | 837200 | TORSION SHAFT | 1 | 808.51 | + |
| 11 | 230915 | O-RING DIN 3771-33X3-N, FPM 75 | 1 | 10.03 | + |
| 12 | 827470 | SEALING WASHER 40x12,1x2,5 | 1 | 13.97 | + |
| 13 | 945880 | RETAINING RING 40X1,75 | 1 | 3 | + |
| 14 | 250640 | joint cuivre 12X18-CU | 1 | 1.48 | + |
| 15 | 841150 | HEX. SCREW - M12X20 - A2-70 | 1 | 24.46 | + |
| 16 | 845431 | FRICTION WASHER VS30 | 1 | 9.5 | + |
| 17 | 842579 | HEX. NUT M30X1.5 12MM, LH | 1 | 16.87 | + |
| 18 | 832950 | NEEDLE BEARING RNA 49/32 | 1 | 244.56 | + |
| 19 | 227280 | THRUST WASHER | 1 | 7.55 | + |
| 20 | 940316 | COUNTERSUNK SCREW M5X12-5.8 | 1 | 0.47 | + |
| 21 | 440282 | SK/TORX-FLANGE SCREW M6X40-SW8/T30 | 10 | 0.46 | + |
| 22 | 940077 | HEX./TORX-FLANGE SCREW M8X45-SW10/T40 | 2 | 1.6 | + |
