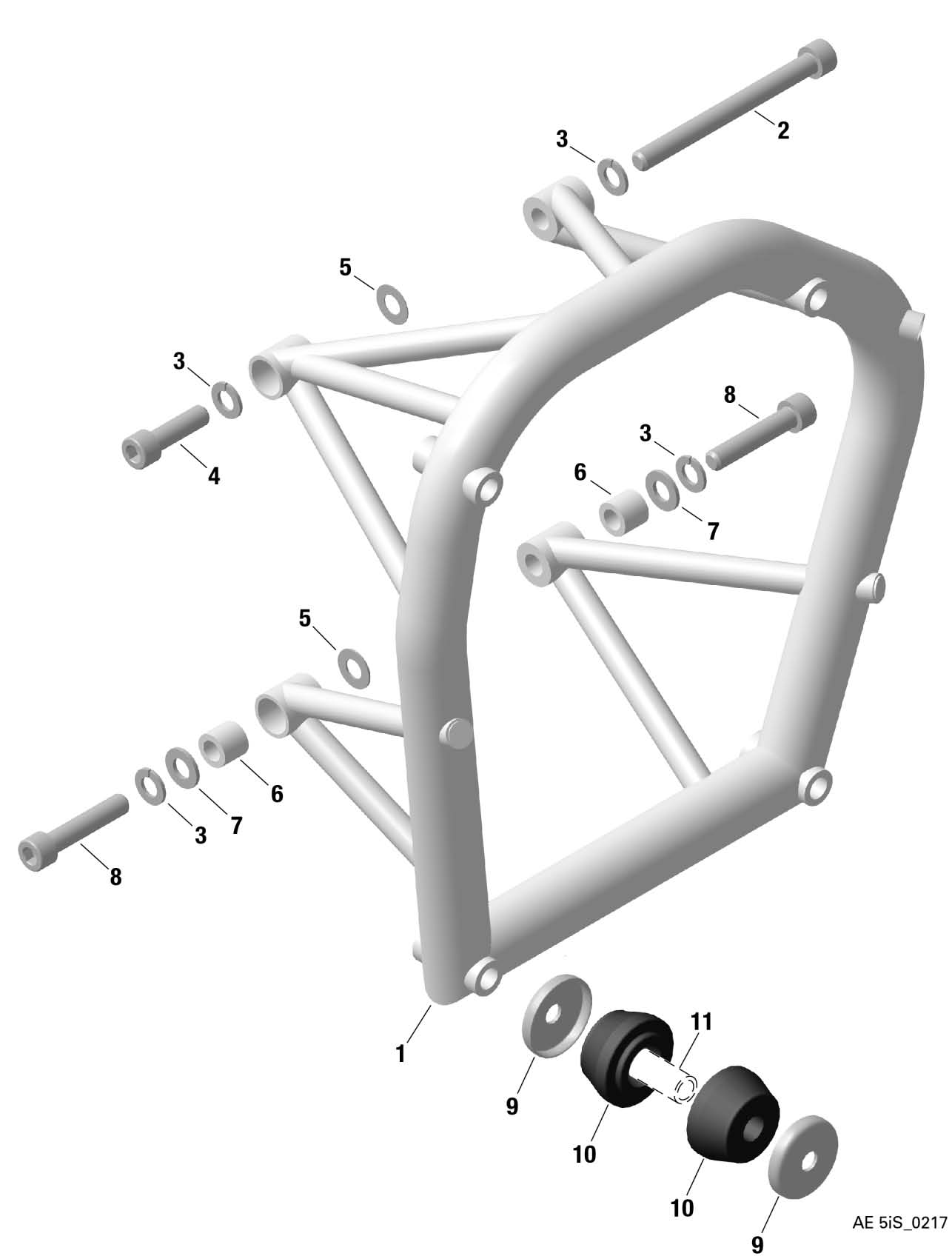

fig. 71-20-00
ENGINE SUSPENSION FRAME For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 886563 | ENGINE SUSPENSION FRAME ASSY. | 1 | 1028.89 | + |
| 2 | 941487 | ALLEN SCREW M10X110 DIN 912 | 1 | 6.5 | + |
| 3 | 945753 | Voir 945833 | 4 | 0 | + |
| 4 | 840948 | ALLEN SCREW ISO 4762 - M10X35 | 1 | 3.95 | + |
| 5 | 927952 | THRUST WASHER 10,1/20/0,5 | AR | 4.46 | + |
| 5 | 927953 | THRUST WASHER 10,1/20/1,0 | AR | 4.58 | + |
| 6 | 847841 | SPACER 10,5/17/15 | 2 | 10.13 | + |
| 7 | 927410 | Rondelle diamètre 10 mm | 2 | 0 | + |
| 8 | 640572 | ALLEN SCREW M10X50 | 2 | 3.46 | + |
| 9-10 | 860695 | SHOCK MOUNT SET | 1 | 646.67 | + |
| 9 | 944240 | CUP WASHER | 8 | 63.37 | + |
| 10 | 860690 | SHOCK MOUNT | 8 | 158.71 | + |
