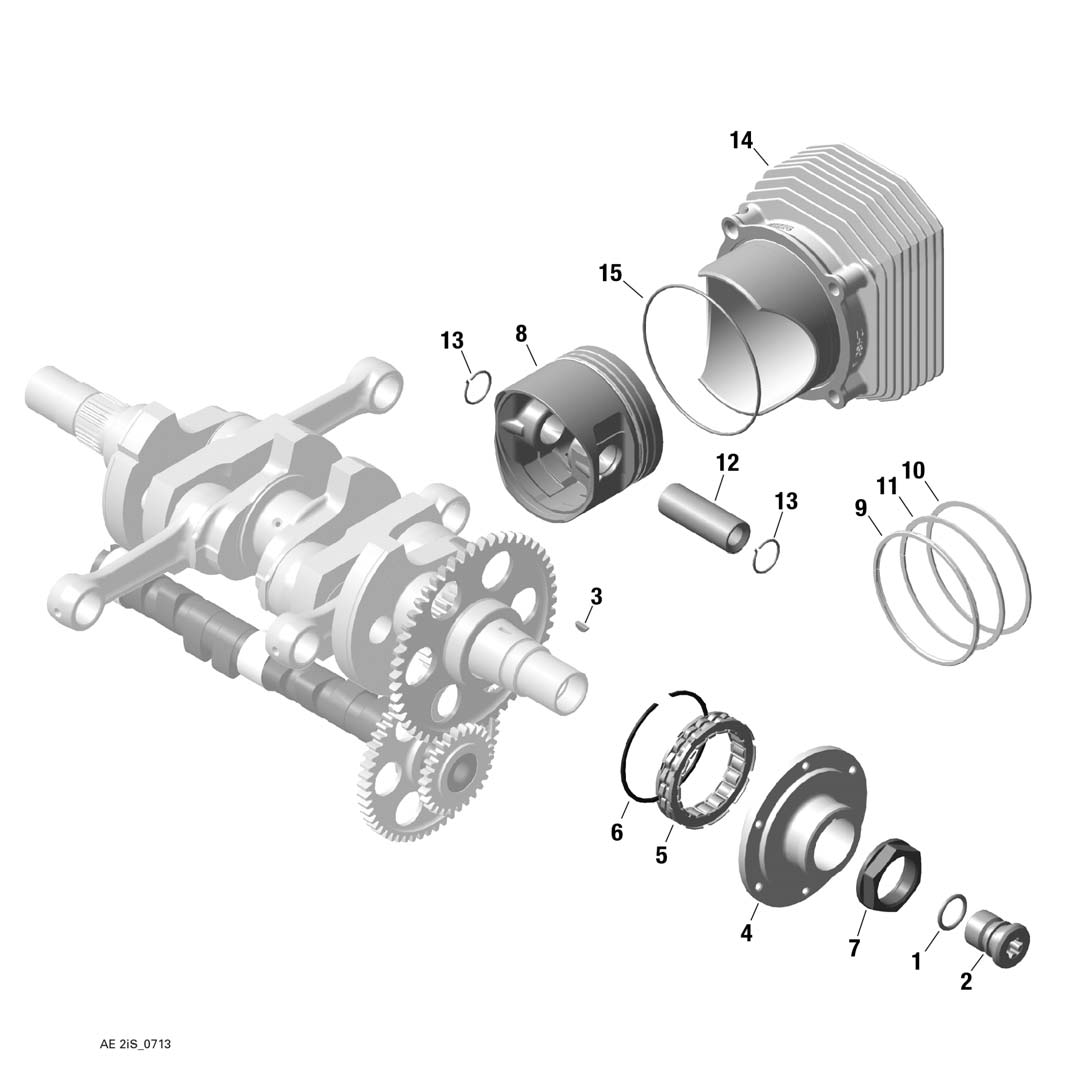

fig. 72-20-00-2
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 250055 | O-RING DIN 3771-18X2,5-N, FPM 75 | 1 | 1.5 | + |
| 2 | 940520 | PLUG SCREW M22X1,5 | 1 | 28.18 | + |
| 3 | 246055 | WOODRUFF KEY 3X3,7 DIN 6888 | 1 | 3.46 | + |
| 4 | 852407 | SPRAG CLUTCH HOUSING | 1 | 159.5 | + |
| 5 | 958856 | SPRAG CLUTCH 51,710X68,377X13 | 1 | 452.88 | + |
| 6 | 845425 | CIRCLIP 70 | 1 | 7.48 | + |
| 7 | 942250 | HEX. NUT M32X1,5-LH | 1 | 25.13 | + |
| 8-10 | 888382 | PISTON ASSY. 84/84,01 MM | 4a | 522.96 | + |
| 9 | 815230 | OIL SCRAPER RING | 4 | 69.79 | + |
| 10 | 815280 | TAPERED COMPRESSION RING 84 | 4 | 49.12 | + |
| 11 | 815251 | RECTANGULAR RING 84/77X1,5 | 4 | 89.99 | + |
| 12 | 916356 | PISTON PIN 20X12X55,3 | 4 | 88.39 | + |
| 13 | 845106 | MONOHOOK CIRCLIP 20 | 8 | 2.42 | + |
| 14 | 913226 | CYLINDER | 4b | 815.41 | + |
| 15 | 250510 | O-RING 87X2 | 4 | 27.36 | + |
